The purifier is an indispensable device when manufacturing high-end and low ash content flour. It is used to purify and grade the different-sized middling and semolina offered by previous plansifter for a second time, thus obtaining pure middling and semolina with improved quality and more consistent particle size distribution. Subsequently, these high-quality intermediate products will enhance the flour quality.
Its components are very robust, and the service cycle is quite long. So, the maintenance cost is effectively cut down.
The materials are conveyed at a constant speed to pass the feed gate, and then they are evenly distributed on the sieve. So, continuous production is realized, and the quality of final production is ensured. On the other hand, the sieves are cleaned in a reliable way, and this means consistent product quality is expectable.
The metal sieve frame is outfitted with a brush cleaner to avoid material accumulation, and the optimized aspiration system ensures no residues, which realizes sanitary operation.

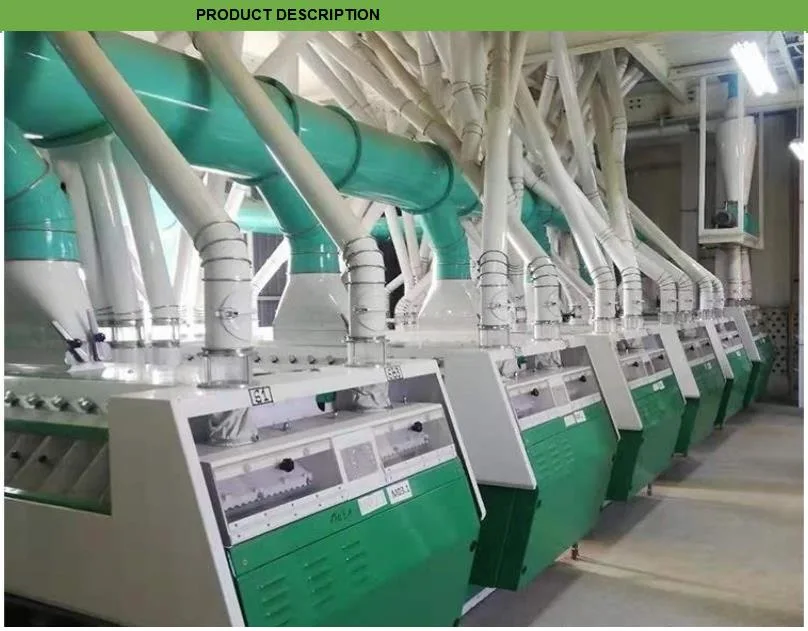

Product Description
We have been focusing on flour mill engineering for 20 years.
Shanghai Chidan is an intergrated milling solution provider,specialized in
1. Complete milling line with concrete buliding
2. Complete milling line with fully steel structure building
3. Complete milling line with compact steel structure
4. Complete milling line with single machine
5. Individual equipments such as roller mill,plansifter,purifier,separator,destoner,wheat,scourer,packing machine，bucket elevator,conveyor,filter

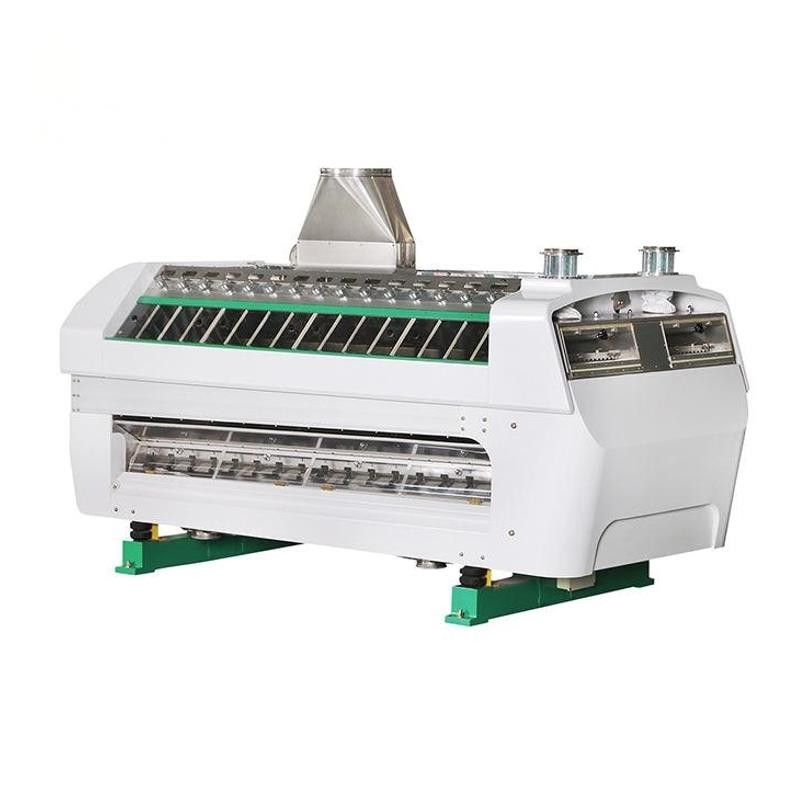

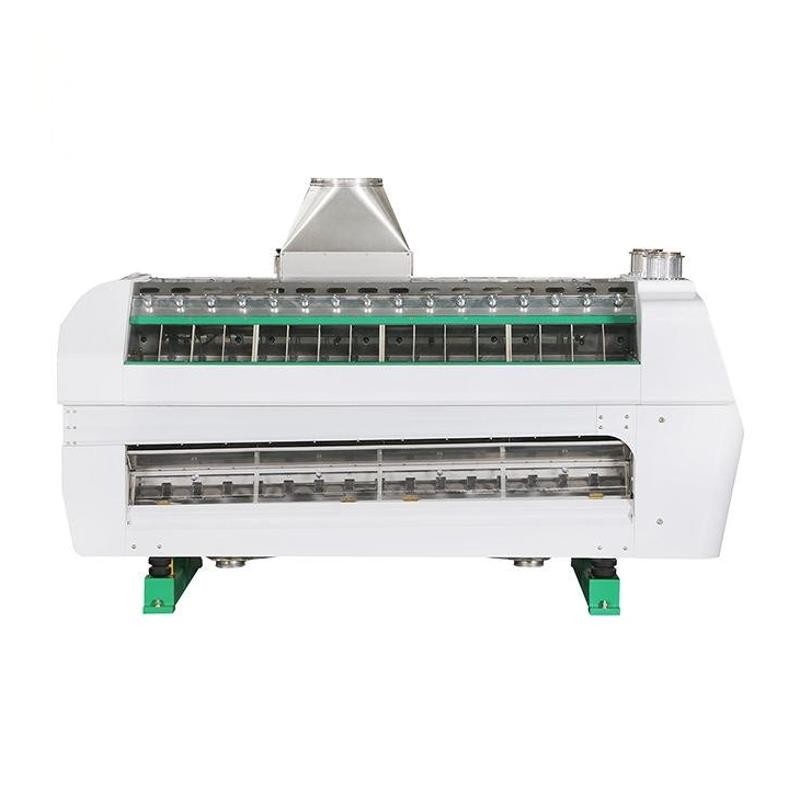

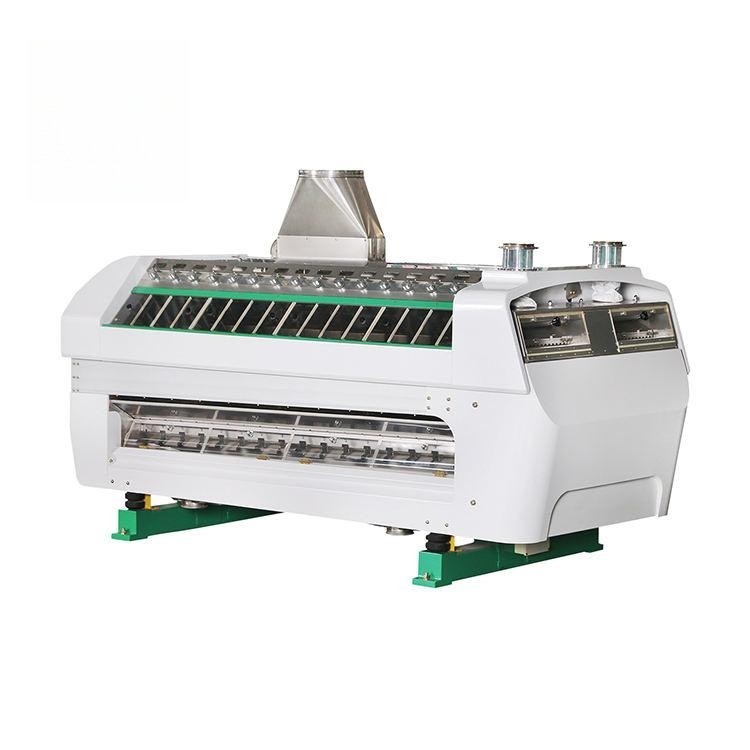

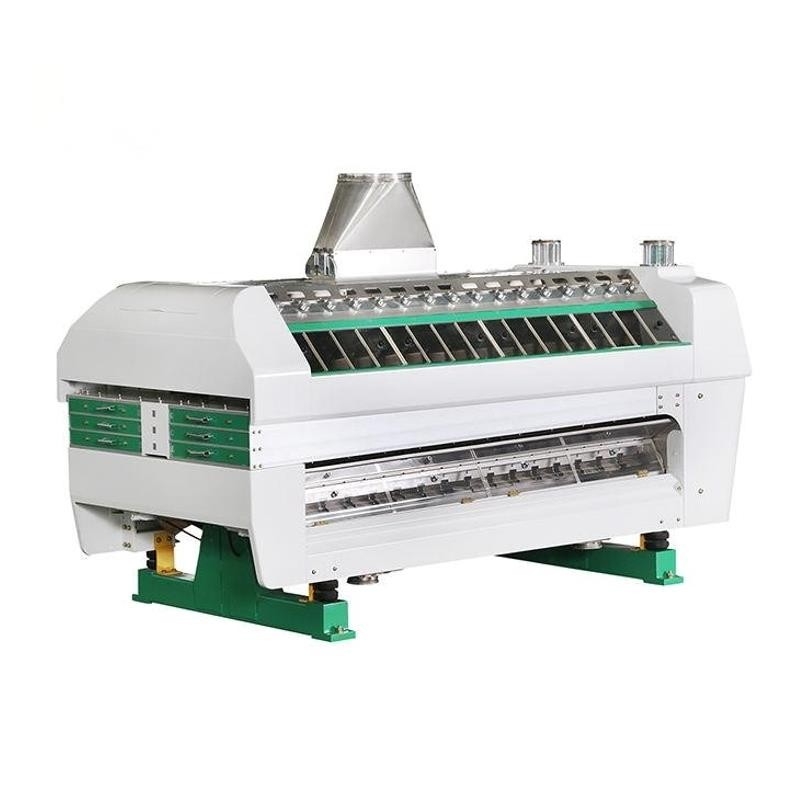

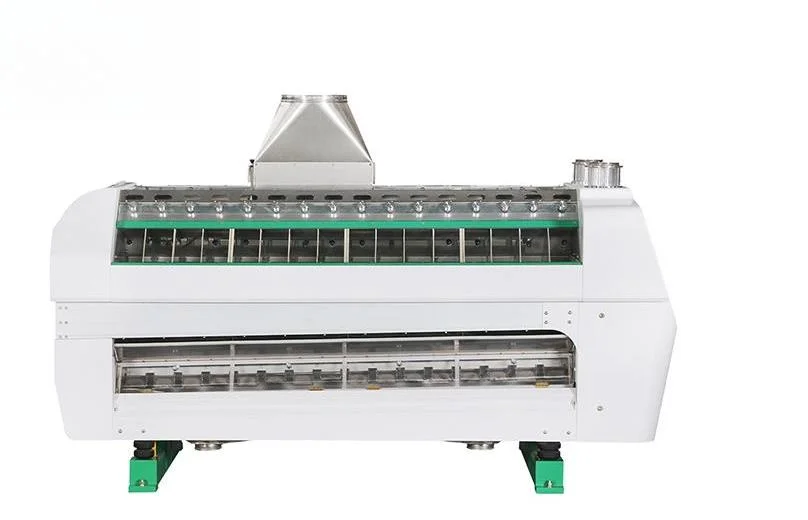

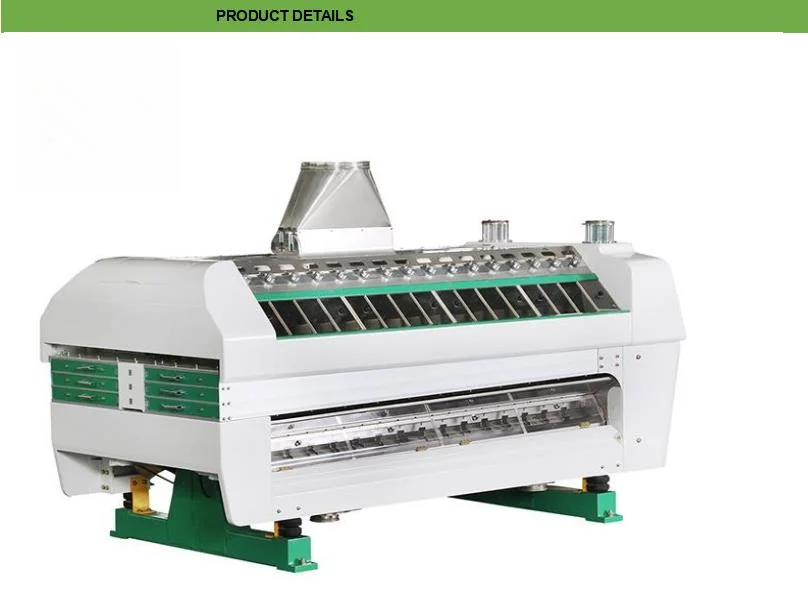

Flour purifier
The purifiers (purifier for middlings in maize mills) through methods of vibrate, wind, sieve, with small
inclination of sieve surface and the sieve covering set gradually sparse from the materials in way to materials
out way, to make the material in the screening surface is flowing and thin gradually, half suspended state fluid.
This makes it grade automatically according to the different bulk specific gravity, thus form different materials
level with unobvious line.
The materiel is divided into three parts by purifier processing:
a. The under materiel: Majority is pure wheat heart, the front part of undersize materiel is pure and thin, the
tail part of undersize materiel includes little bran. They should be delivered into heart or dregs of roller mill
to process.
b. Over materiel: Majority is wheat dregs bonding bran or thin bran including albumen. They should be
delivered into thin husk or tail of roller mill to process.
c. Airflow pick-up: Majority of materiel is thin bran and dust.
Model | Capacity | Ampltude(mm) | Screen Angle(°) | Aspiration Volume(m3/min) | Power | Weight | Size L*W*K(mm) | |
Coarse | Fine | |||||||
FQFD49*2*3 | 1200-1600 | 800-1600 | 8.5-9 | 1-2 | 40-70 | 2*0.18 | 970 | 2700*1290*1675 |
FQFD59*2*5 | 1800-3500 | 1200-2000 | 55-90 | 2*0.25 | 1100 | 2700*1490*1675 | ||
Working Principle:
This machine is designed for separating pure endosperm granular from its mixture. It comprises two independent
sieve-decks, each with three ranges of double superimposed sieves. The two sieve-decks are supported by four
rubber spring bushes on a steel frame and vibrated by two vibration motor which installed at the end of the machine. Independent aspiration is connected on the top of the machine. The mixture flows into sieve decks and is classified
by the interaction of vibration and suction while it's flowing to the end of the machine. The materials then are
separated to pure endosperm semolina, endosperm with barn fraction, pure bran fraction and then are sent to
different next passage.
Product Features:
1. Advanced design and excellent fabricating.
2. Sieve size:490mmx490mm, 590mmx590mm.
3. Aluminum inlets, conveying and collecting trough for durable working.
4. Imported rubber spring bushes, reliable.
5. Imported SEFAR cloth.
6. High quality vibration motor.
Application:
1. Widely applied in modern flour mills for high quality flour.
2. Successfully used for semolina flour in durum flour mills.
3. Please feel free to contact us if more information is needed.
