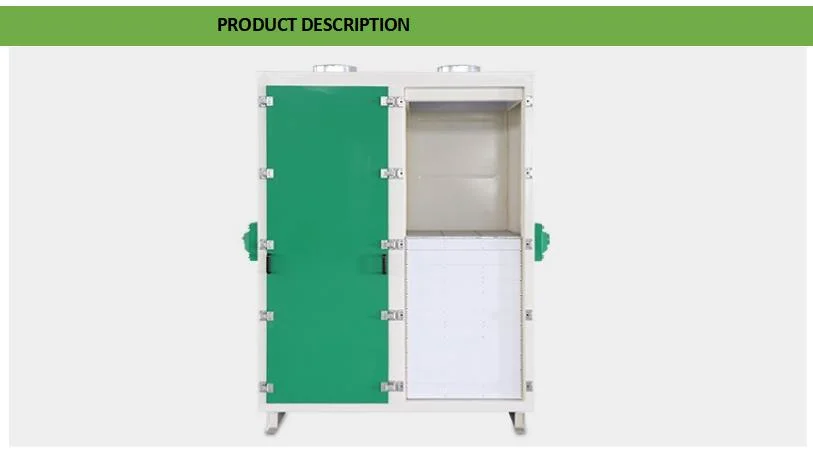

Product Description
Working principle

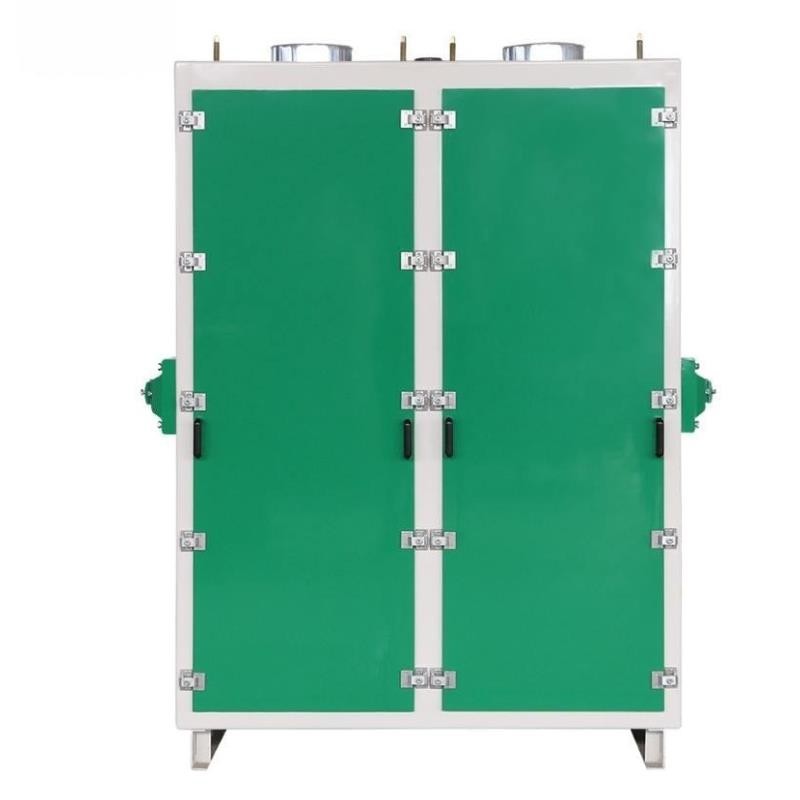

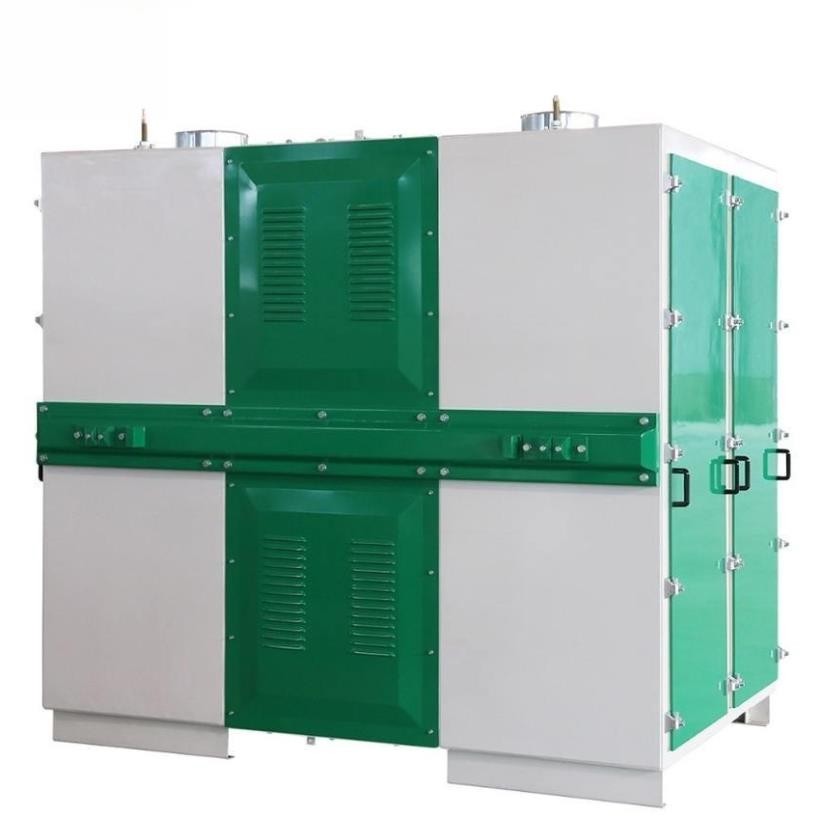

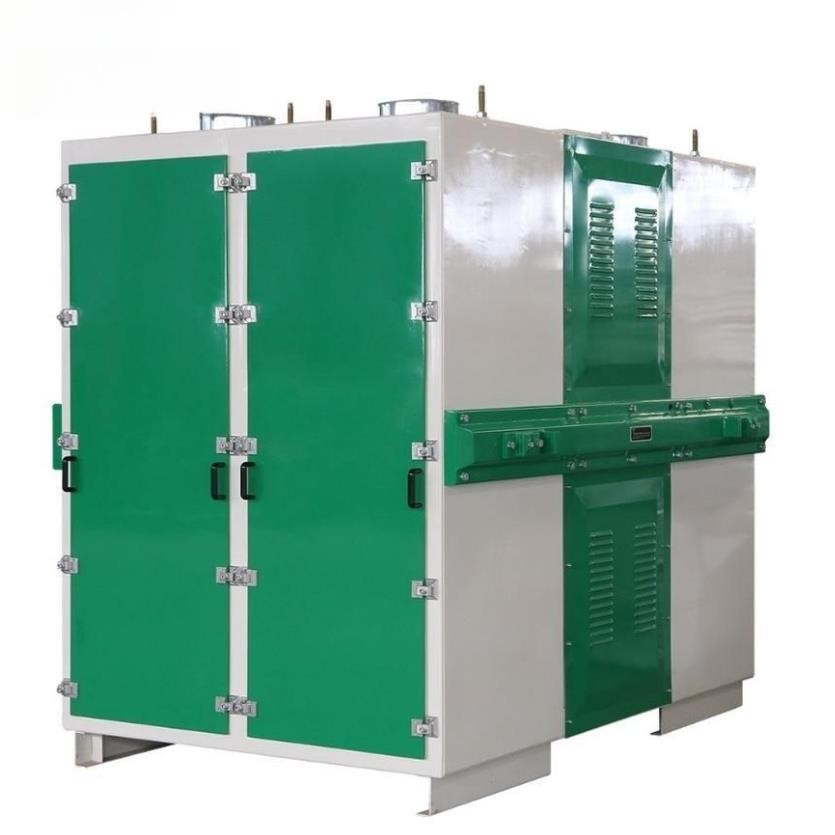

The machine is driven by a motor which is installed inside of the main frame and counter-balanced by a counterweight. Each machine has 4, or 6, or 8 sections sieves inside. Different material flows into the different section on its own route. According to individual design for different materials, the sieve sifts different granular material to different next passage in flour mills when the whole machine is running.
Features
1. Sieve frame size: 640x640mm, 740mmx740mm-two types for choice.

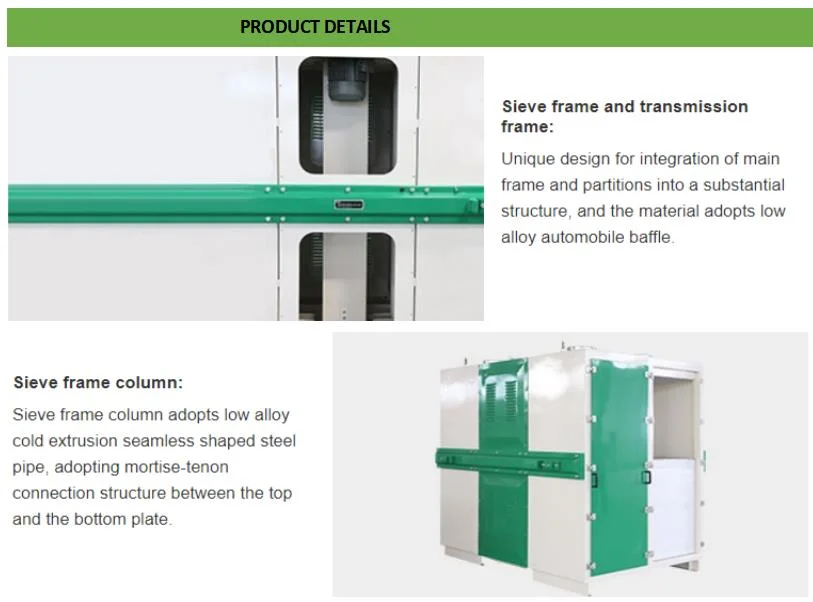

2. Framework is pressed steel plate. Stainless steel trays and support wire. With self aligning type SKF (Sweden)
special double row roller bearings.

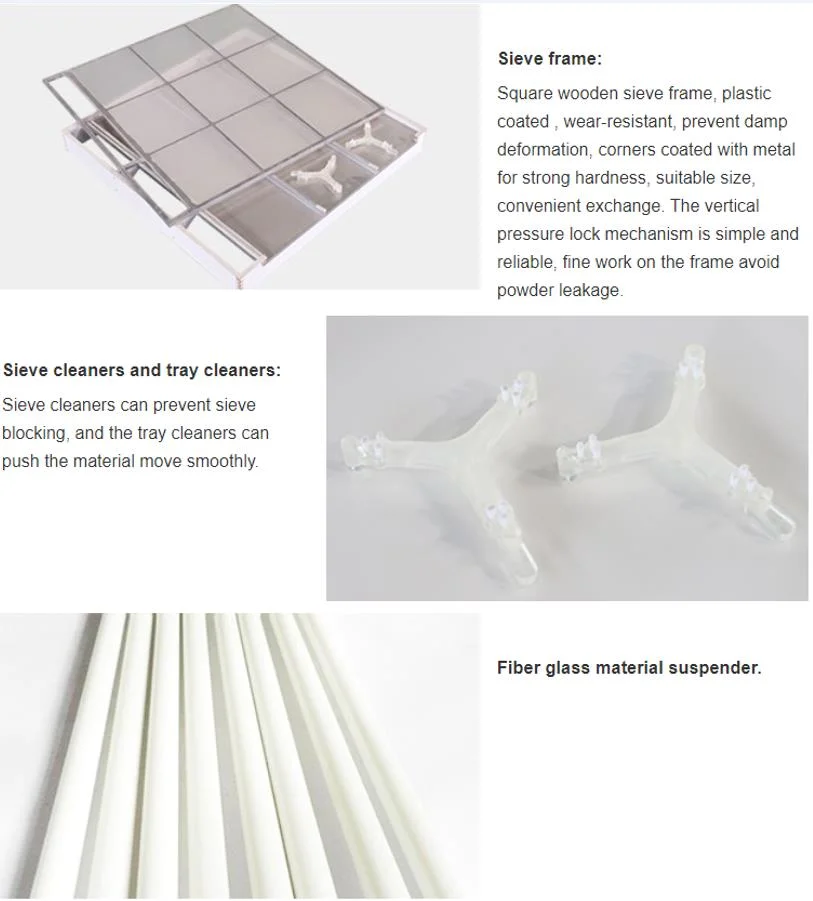

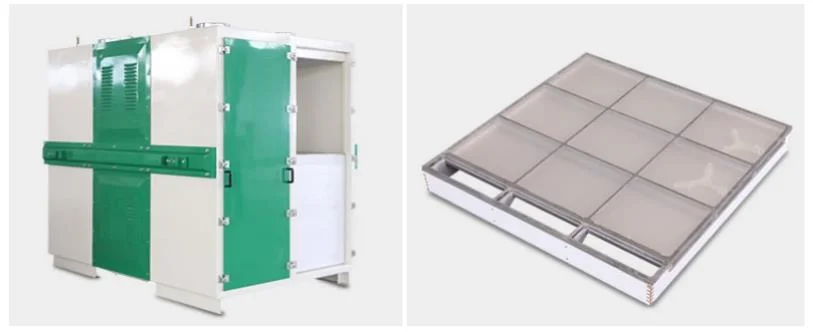

3. Sieve frames are made by imported wooden pasted with high quality plastic melamine lamination, easy to
demount and interchange, which make the changing of sifting scheme easy and quick if necessary.
4. Flour Sieve is with Switzerland SEFAR sieve cloth.
5. Newly Nova style sieves or aluminum inner sieves are also available.
Technical Parameter List:
Model | Section | Sieve Size | Power(KW) | Rotary | Sifting Area(m2) | Main Shaft Speed(r/min) |
FSFG4*16 | 4 | 640-740 | 3 | 64+2/2 | 21.1-29.1 | 245 |
FSFG6*16 | 6 | 640-740 | 4-4.5 | 31.7-43.7 | ||
FSFG8*16 | 8 | 640-740 | 5.5-7.5 | 42.2-58.2 | ||
FSFG4*24 | 4 | 640-740 | 3-5.5 | 31.7-43.7 | ||
FSFG6*24 | 6 | 640-740 | 4-7.5 | 47.5-65.5 | ||
FSFG8*24 | 8 | 640-740 | 7.5-11 | 63.4-87.4 | ||
FSFG4*28 | 4 | 640-740 | 4-7.5 | 37.51 | ||
FSFG6*28 | 6 | 640-740 | 5-7.5 | 55.4-76.4 | ||
FSFG8*28 | 8 | 640-740 | 11-15 | 73.9-101.9 |
Our service
1. One year quality warranty for the machine and spare parts
2. Overseas engineers service for installation
3. Whole-life after-sales service and free consultation
4. Customized requirements available
5. Technician guide at the site.
6. 24Hr online service
